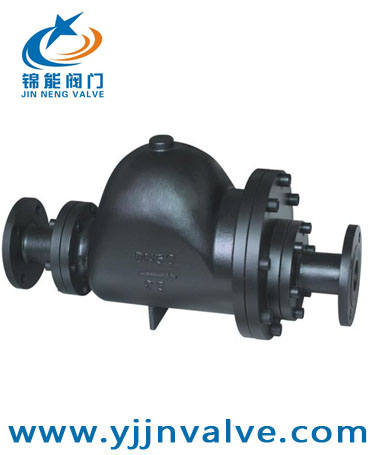

产品名称：GH5-16R杠杆浮球式蒸汽疏水阀
产品型号：GH5-16R
产品报价：￥660.00
产品特点：lntroduction:extensively applied in petroleum,metallurgy,chemical industry,paper making ,foods and steam equipments ,driers and large heat exchangers,especially for working places with large amount of condensed water be discharged.
GH5-16R杠杆浮球式蒸汽疏水阀的详细资料：
lntroduction:extensively applied in petroleum,metallurgy,chemical industry,paper making ,foods and steam equipments ,driers and large heat exchangers,especially for working places with large amount of condensed water be discharged.
Structures : 1、tow balanced valve bases to increase the area of flux and acquire large amount of water discharged.
2、automatic gas discharging mixture to timely discharge the gas for rapidly opening the equipment .
3、all parts are in stainless steel structure to ensure perfect performances of anti – corruption and abrasive.
Main parts and specifications：
|
Main parts materials
|
Parts
|
Materials
|
|
Body/Bonnet
|
Carbon Forged steel
|
|
|
Float Ball
|
Stainless Steel
|
|
|
Double seat
|
Stainless Steel
|
|
|
Bracket
|
Stainless Steel
|
Technological parameter date：
| Model |
Nominal
Diameter |
Connection
|
Pressure
Rating |
Max allowable
TMP(℃) |
External dimensions(mm)
|
Re.weight
|
|||||
|
L
|
L1
|
H
|
H1
|
H2
|
W
|
||||||
|
G3-10-10-21
|
25~50
|
Flange
|
0.01~2.1
|
425
|
265
|
|
280
|
115
|
|
230
|
28
|
|
G5-10-16-21
|
50~100
|
0.01~2.1
|
360
|
|
300
|
120
|
|
260
|
52
|
||
|
GH3-10R
|
25~32
|
0.01~1.0
|
427
|
|
280
|
115
|
|
230
|
44
|
||
|
GH3-16R
|
25~50
|
0.01~1.6
|
437
|
|
280
|
115
|
|
230
|
46
|
||
|
GH3-21R
|
50
|
0.01~2.1
|
457
|
|
280
|
115
|
|
230
|
48
|
||
|
GH5-10-16R
|
80~100
|
0.01~1.6
|
570
|
|
300
|
120
|
|
260
|
70
|
||
|
GH5-21R
|
0.01~2.1
|
570
|
|
300
|
120
|
|
260
|
73
|
|||
|
GH4-50
|
40~80
|
Flange
|
0.01~5.0
|
425
|
345
|
428
|
430
|
340
|
|
270
|
75
|
|
GM2
GSB2-10、20 |
25~40
|
Flange
|
0.01~2.0
|
425
|
200
|
310
|
230
|
83
|
59
|
|
28
|
|
50
|
200
|
||||||||||
|
GM4
GSB6-10、20 |
32~50
|
200
|
380
|
310
|
105
|
90
|
|
40
|
|||
|
GM6
GSB6-10、20 |
40~80
|
270
|
439
|
345
|
130
|
88
|
|
80
|
|||
|
GM8
GSB6-10、20 |
80~100
|
350
|
608
|
482
|
174
|
120
|
|
165
|
|||
订货须知：
一、①GH5-16R杠杆浮球式蒸汽疏水阀作用产品名称与型号②GH5-16R杠杆浮球式蒸汽疏水阀作用口径③是否带附件以便我们的为您正确选型。
二、若已经由设计单位选定GH5-16R杠杆浮球式蒸汽疏水阀作用型号，请按GH5-16R杠杆浮球式蒸汽疏水阀作用直接向我司销售部订购。
三、当使用的场合非常重要或环境比较复杂时,请您尽量提供设计图纸和详细参数，由我们的锦能阀门专家为您审核把关。
尊敬的客户：
欢迎您访问我们的网站www.yjjnvalve.com如有任何疑问.您可以致电给我们,我们一定会尽心尽力为您提供优质的服务。
